6.7L Powerstroke Turbo Pedestal Kit Update For 2015-2016

6.7L Powerstroke Turbo Pedestal Kit Update For 2015-2016.

When installing a 888142-5001S and or 888143-5001S on a 2015-2016 Ford 6.7L Powerstroke, this AP0198 turbo mounting pedestal update kit is required to update the turbocharger mounting pedestal, Coolant Lines and related hardware to the newest 2017+ Truck pedestals.

This kit enables you to convert from the externally top oil fed turbocharger to the new style internally oil fed & drained turbocharger that was found on 2017-2019 Ford F-Series trucks.  Failure to do so, will lead to oil starvation and bearing failure of your new turbocharger.

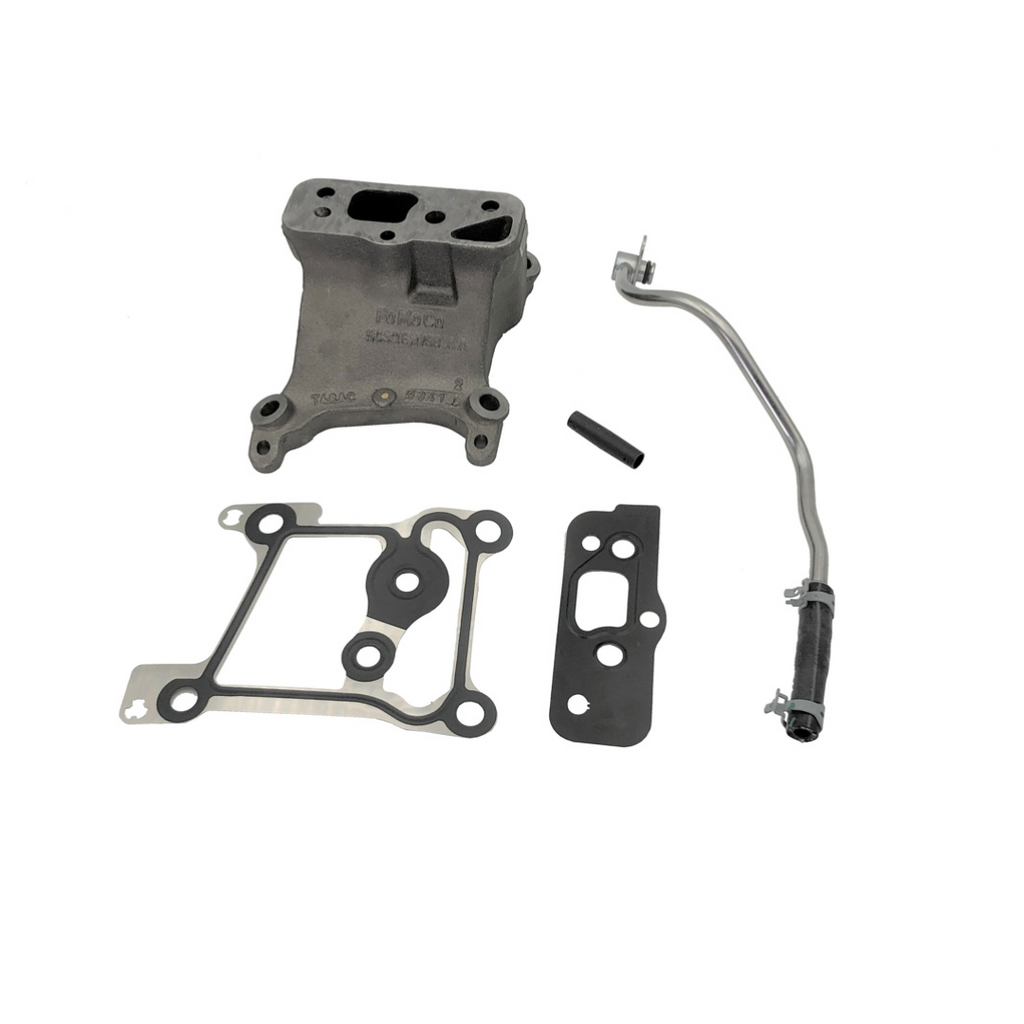

Kit Content Includes:

(1) 2017+ Turbocharger Pedestal Mounting Gasket OE# BC3Z-6587-A
(1) Pedestal Oil Filter OE# HC3Z-6C683-A
(1) 2017+ Turbo Coolant Pipe OE# FC3Z-9U469-B
(1) 2017+ Pedestal to turbo mounting gasket OE# HC3Z-6587-A
(1) 2017+ Turbo Mounting Pedestal OE# HC3Z-6N639-A
