Description
6.7L Powerstroke Fuel Contamination Kit - 2020-2022 Pickup & Cab & Chassis (AP57003)
Note: A refundable core charge of $1000.00 is required at the time of purchase. This charge will be fully refunded once your old core is returned and evaluated as a rebuildable unit.

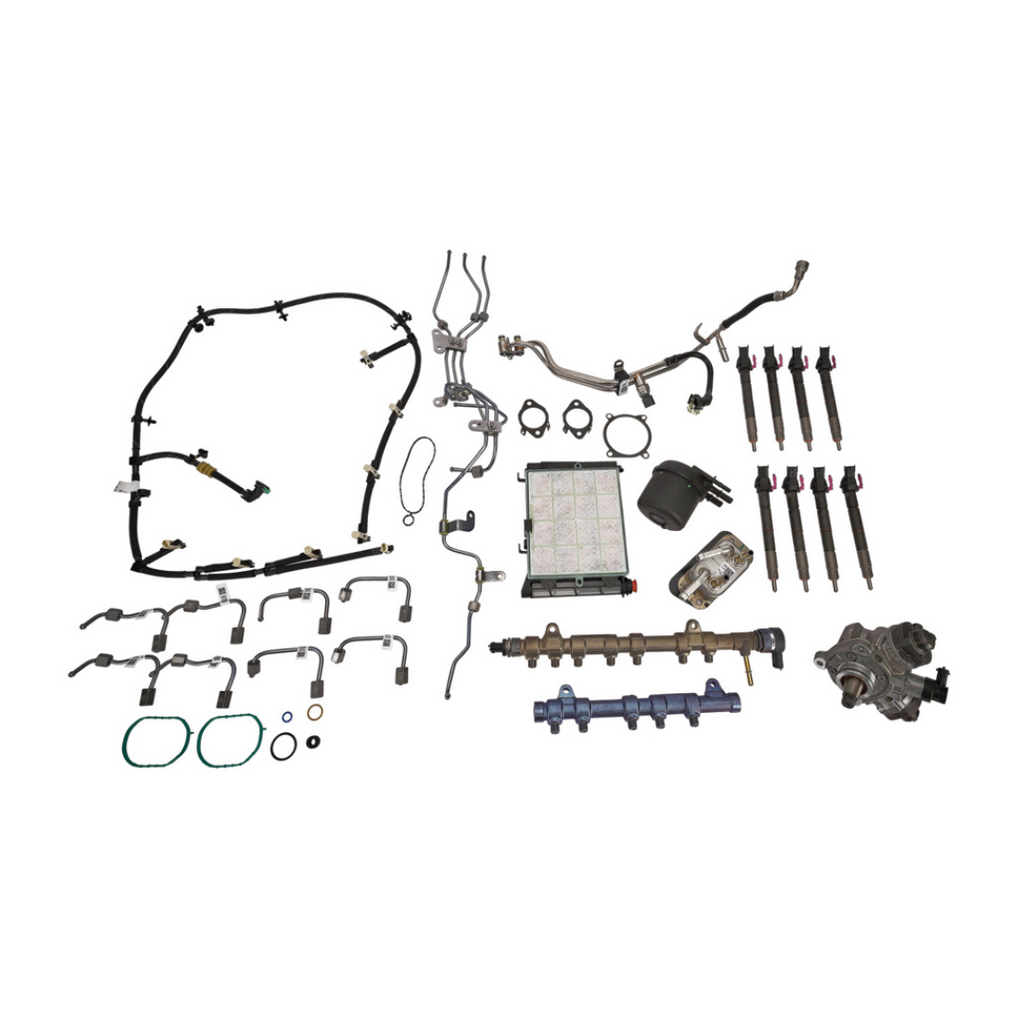

Included in the Box:
- 1x Bosch CP4 Injection Pump (OE# LC3Z-9A543-A)
- 4x Bosch OE Injectors (OE# LC3Z-9H529-A)
- 4x Bosch OE Injectors (OE# LC3Z-9H529-B)
- 4x High Pressure Injector Lines (OE# LC3Z-9A337-B)
- 4x High Pressure Injector Lines (OE# LC3Z-9A337-A)
- 1x Pump To Rail Line (OE# LC3Z-9E964-B)
- 1x Pump To Rail Line (OE# LC3Z-9A337-C)
- 1x Pump To Rail Line (OE# LC3Z-9A337-D)
- 1x Pump To Rail Line (OE# LC3Z-9A337-E)
- 1x Injector Return Line (OE# LC3Z-9A564-B)
- 1x Pump Supply Return Line (OE# LC3Z-9J280-A)
- 1x Right Side High Pressure Rail (OE# LC3Z-9D280-C)
- 1x Left Side High Pressure Rail (OE# LC3Z-9D280-D)
- 1x Fuel Filter Kit (OE# PC3Z-9N184C / FD4647)
- 1x Intake Flap Gasket (OE# LC3Z-9E936-A)
- 2x Upper Intake Seals (OE# LC3Z-9439-B)
- 1x Vacuum Pump Gasket (OE# HC3Z-2A572-A)
- 1x Coolant Pipe O-ring (OE# BC3Z-8527-N)
- 1x Turbo Coolant Seal (OE# HL3Z-6N652-A)
- 1x Oil Fill O-ring (OE# W716324-S300)
- 2x EGR Tube Gaskets (OE# BC3Z-9E464-F)
- 1x Fuel Cooler (OE# LC3Z-9N103-A)
Cross References: 0445010859, 0445118028, 0445118058, 0445218029, 0445218031, 0 445 010 859, 0 445 218 029, 0 445 218 031, LC3Z9A337A, LC3Z9A337B, LC3Z9A543A, LC3Z9B246A, LC3Z9B246B, LC3Z9D280C, LC3Z9H529A, LC3Z9H529B, LC3Z9N103A, and additional OE numbers.
